Large welder
Specification
| Model | UPW1515G6S-X | UPW1521G6S-X | UPW1528G6S-X | UPW3015G6S-X | UPW3021G6S-X |
|---|---|---|---|---|---|
| Output power | 1500W | 3000W | |||
| Frequency | 15kHz | 21kHz | 28kHz | 15kHz | 21kHz |
| Welding force | 180～900N | ||||
| Head stroke | 400mm | ||||
| Horn stroke | 100mm | ||||
| Dimensions(mm) | Generator：442(W)×533(D)×147.5(H)mm Machine：360(W)×630(D)×965～1365(H)mm |
||||

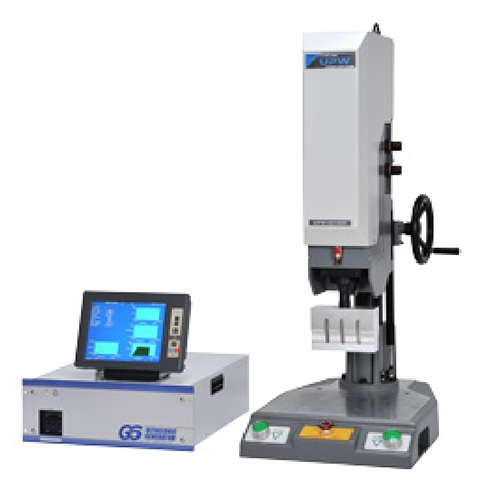

Specification
| Model | UPW1521G6X |
|---|---|
| Output power | 1500W |
| Frequency | 21kHz |
| Welding force | 180～900N |
| Head stroke | 200mm |
| Horn stroke | 85mm |
| Dimensions(mm) | Generator：483(W)X537(D)X177(H) Machine：440(W)X680(D)X1050(H) |
Specification
| Model | UPW3015G6S-Y | UPW3021G6S-Y |
|---|---|---|
| Output power | 3000W | |
| Frequency | 15kHz | 21kHz |
| Welding force | 500～2500N | |
| Head stroke | 400mm | |
| Horn stroke | 100mm | |
| Dimensions(mm) | Generator：430(W)X480(D)X249(H)mm Machine：800(W)×950(D)×1690～2074(H)mm |
|
